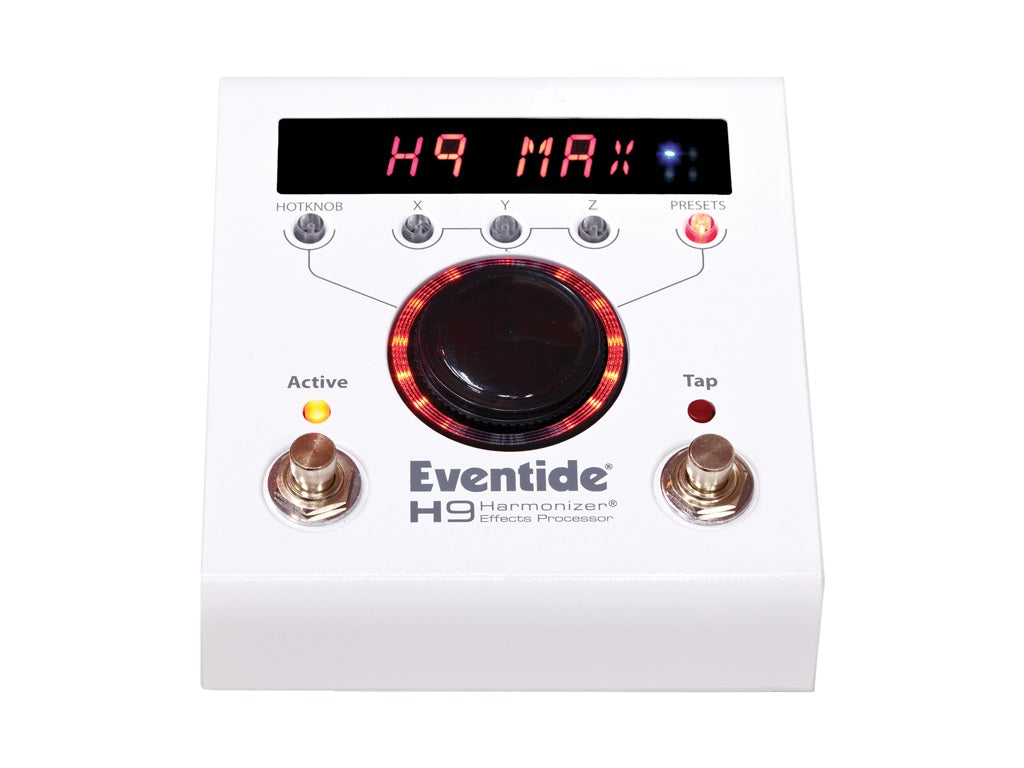

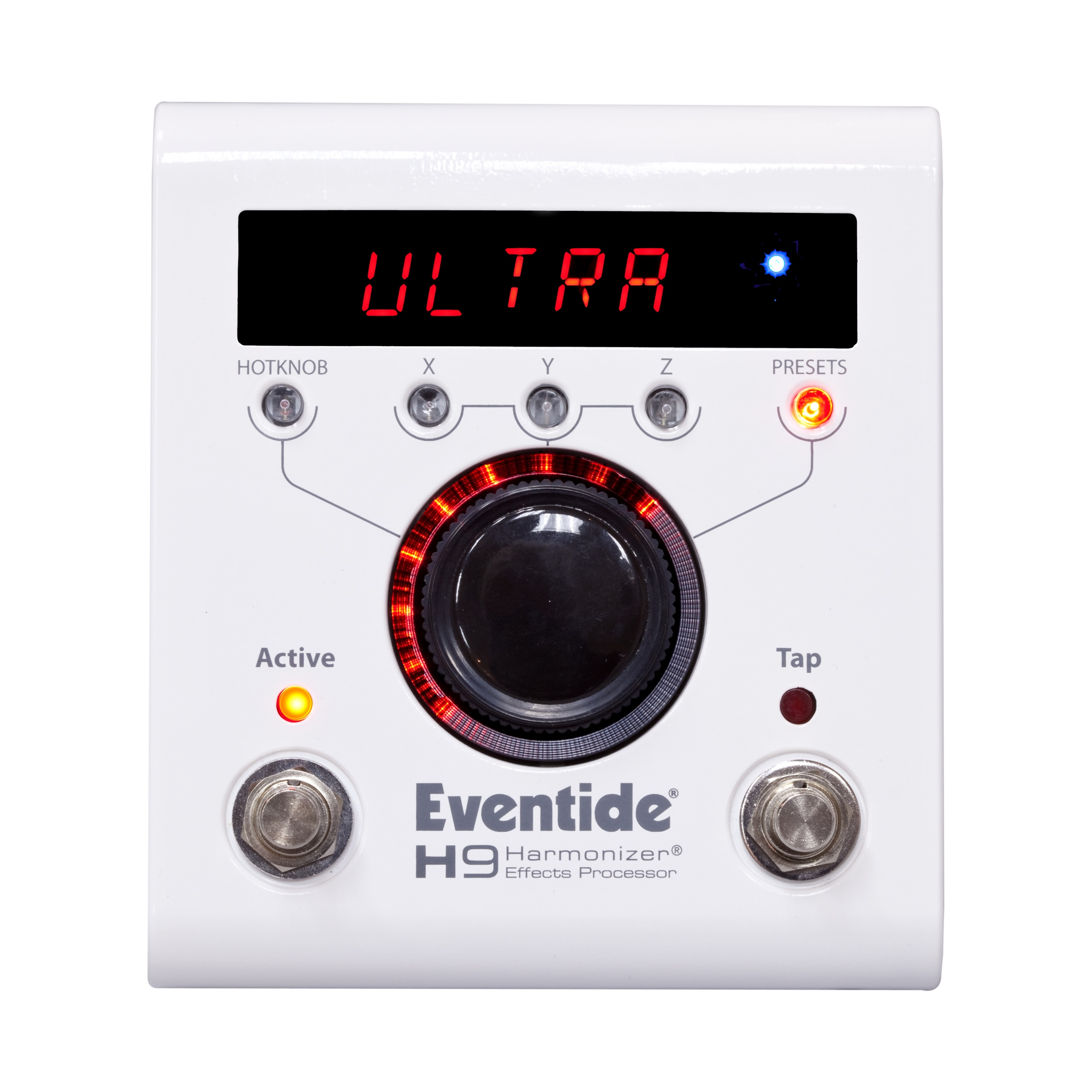

New Eventide H9 MAX Effects Pedal w/OX9 Switch

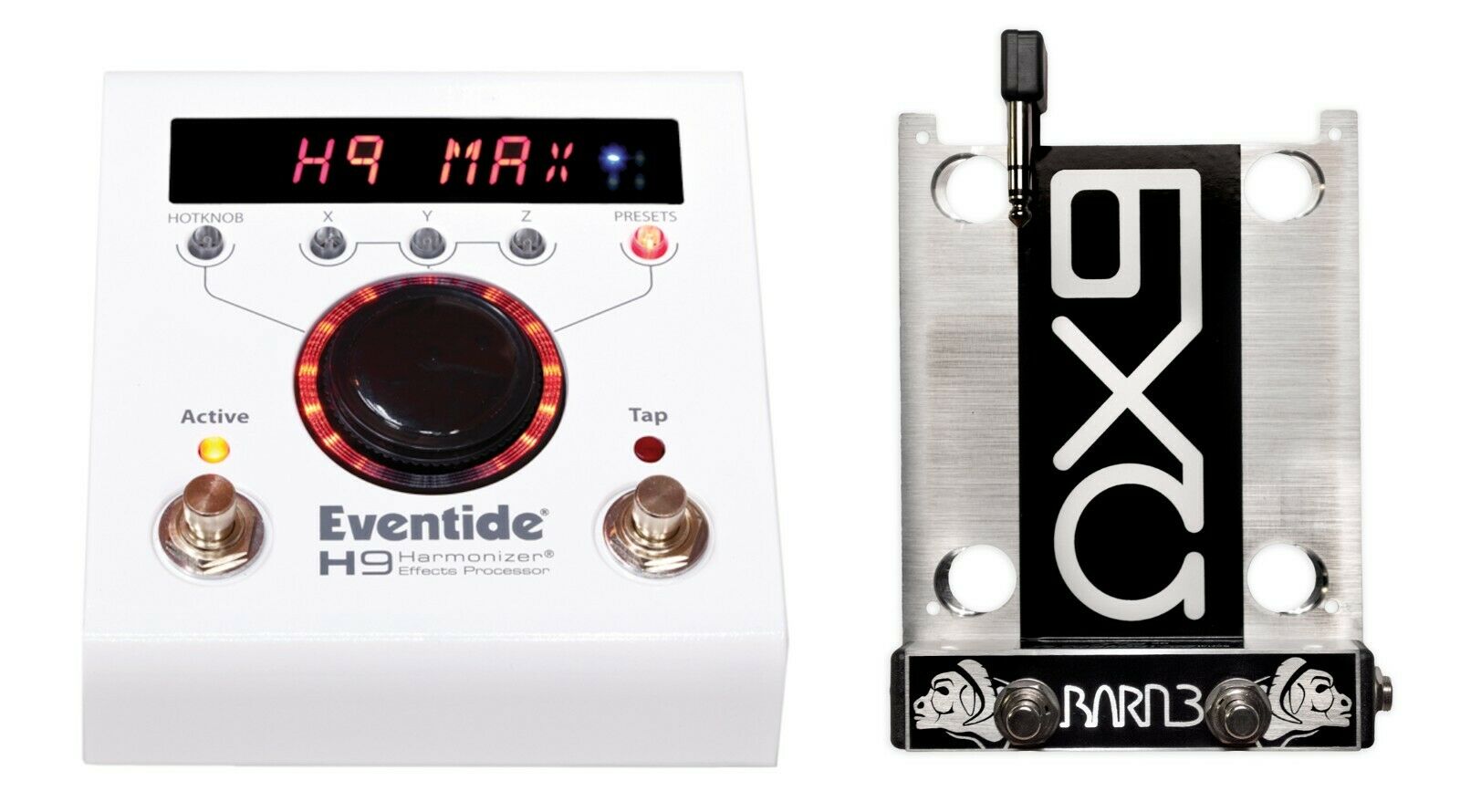

With your purchase you will receive a Barn3 OX9 Footswitch!
The H9 MAX includes all 45 algorithms and associated presets from Space, TimeFactor, PitchFactor, and Modfactor, plus UltraTap Delay, Resonator, and Compressor EQ. Ships with 99 factory presets (all others available through H9 Control app). Wireless Control via Bluetooth using H9 Control app on Windows, OSX, and iOS. Built-in tuner, true bypass, MIDI, and shares algorithms with up to 4 other H9s on one eventide.com account.
Specifications:
Analog Input/Output
- Input impedance: 600K ohms (mono or stereo)
- Output Impedance: 470 ohms
- Recommended Load Impedance: 10K ohms or greater

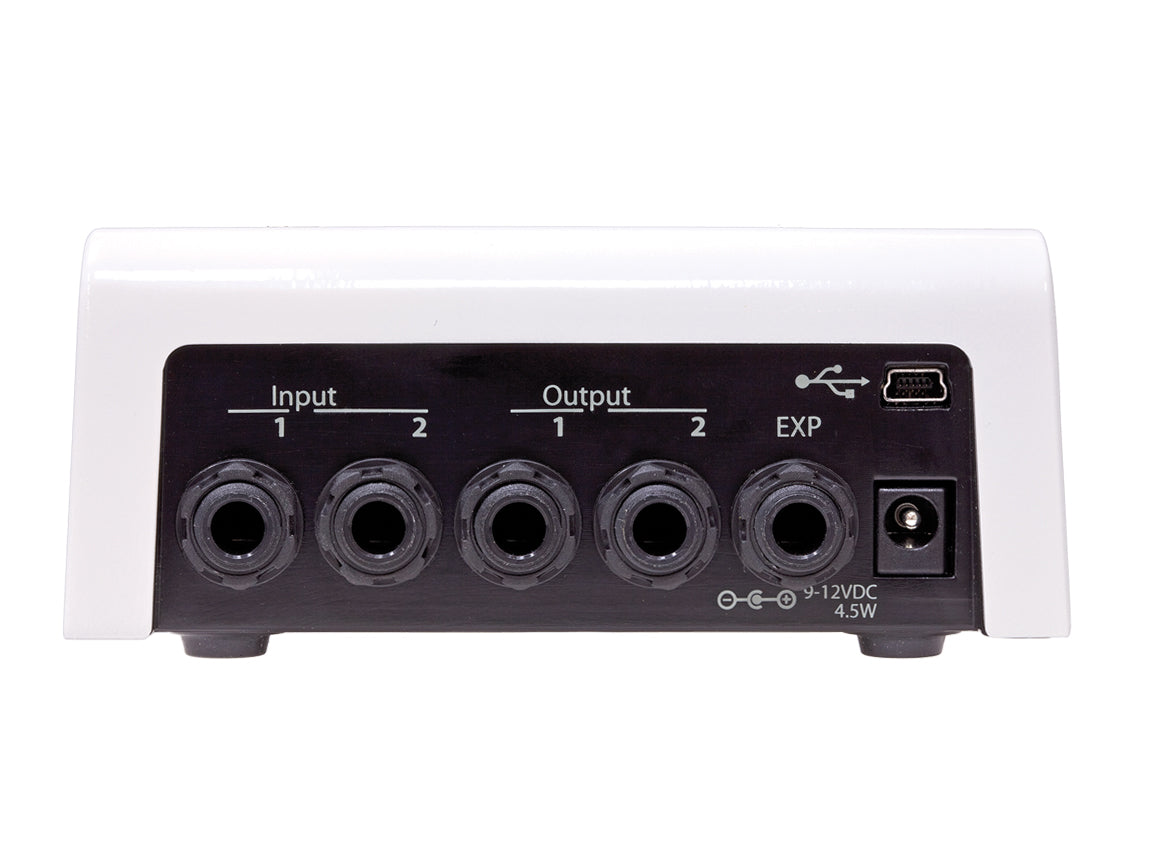

Connectors
- Input 1 (mono): ¼ inch mono phone jack
- Input 2: ¼ inch mono phone jack
- Output 1 (mono): ¼ inch mono phone jack
- Output 2: ¼ inch mono phone jack
- Expression Pedal: ¼ inch stereo phone jack
- MIDI In: Five pin DIN (Female)
- MIDI Out/Thru: Five pin DIN (Female)
- AC Adapter Jack: Power Supply included (see below)
Physical
- Power: 9 VDC, 500 mA, center pin (+)
- Dimensions: English: 5.25" (H) x 4.65" (W) x 1.96" (D), Metric: 133 (H) x 118 (W) x 50 (D) mm
- Weight: 1.53 lbs, 0.7kG

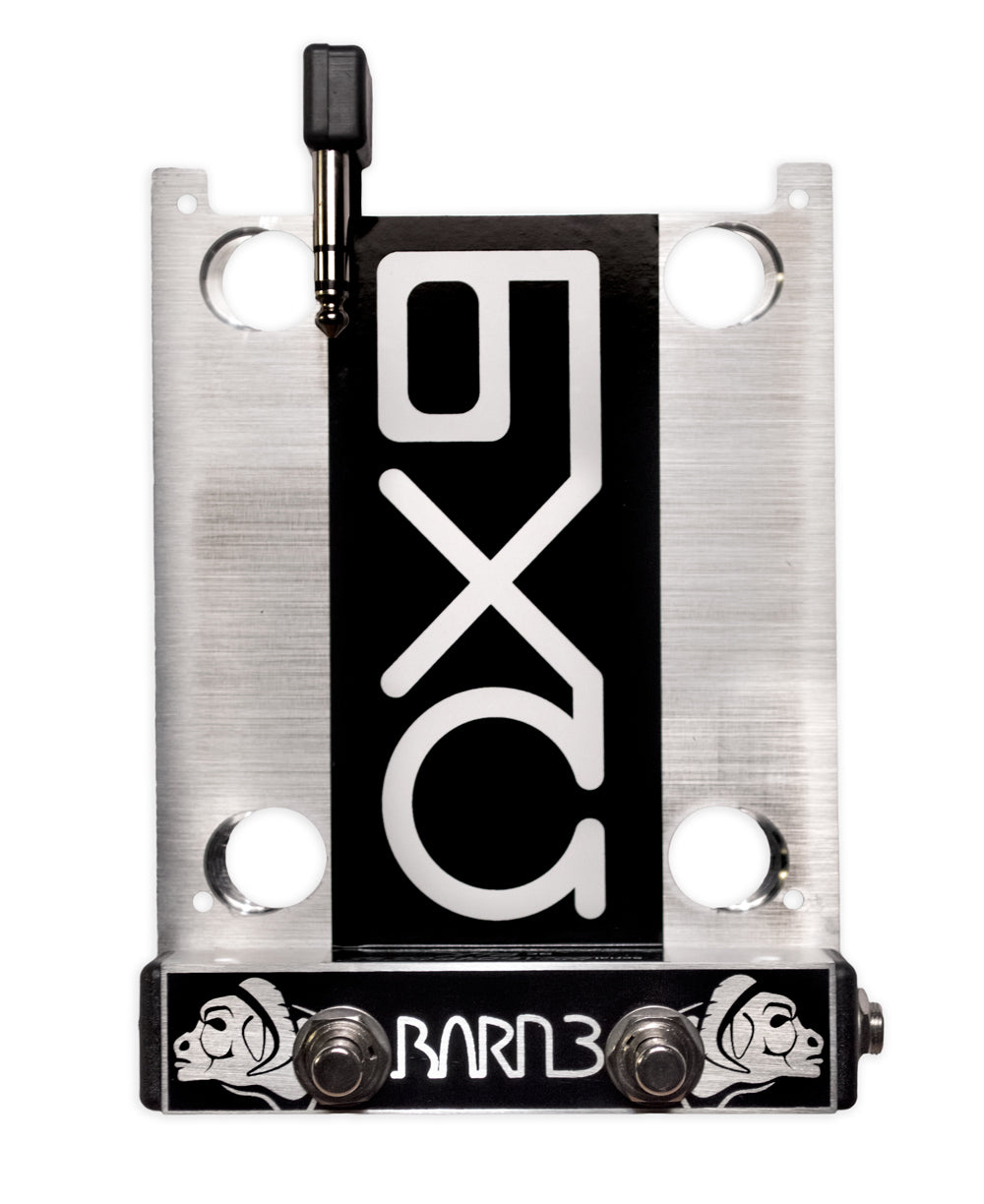

OX9:
Your Eventide H9 is one of the most advanced guitar pedals, utilizing only two buttons. Unleash its full potential with a new kind of auxiliary switch. Meet the OX9 - a handcrafted H9 auxiliary switch with a form-fitting design that gives you more control and takes up less space on your board. With the OX9 Aux Switch, you can control basically any function on the H9 - active/bypass, preset change, tap tempo, enable tuner, performance switch, parameter adjustments, bank up and bank down.
