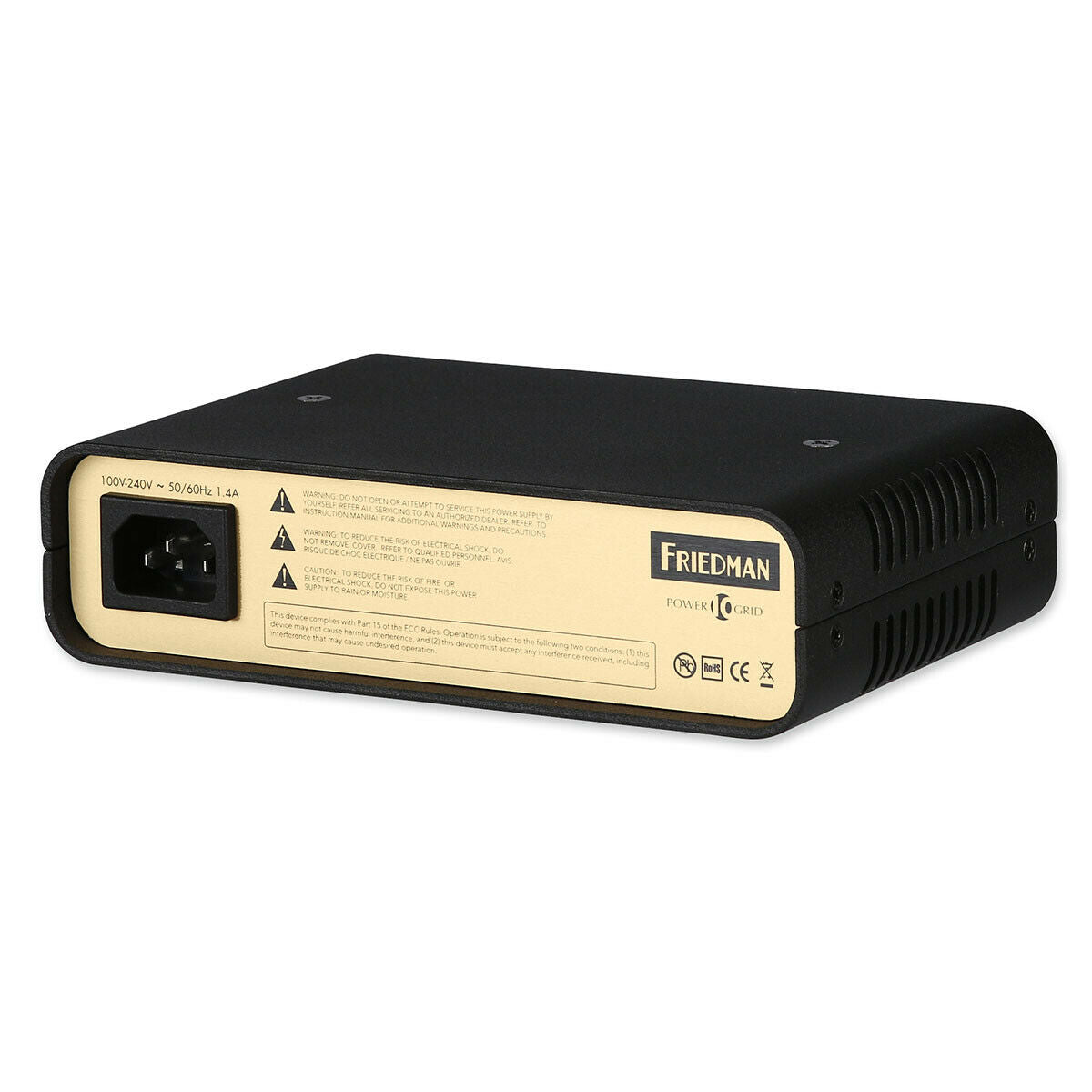

New Friedman Power Grid 10 Isolated Guitar Pedal Power Supply

$219.99
Unit price per

With your purchase you will receive 4 Hosa IRG-100.5 6 Inch Metal Patch Cables!
All power cables included.

This has a U.S. plug, but the voltage is switchable between 110V and 230V for international use.

ISOLATED HIGH CURRENT 9V PEDAL POWER SUPPLY

The POWER GRID 10 was designed to address all of the deficiencies Dave encountered with power supplies from other brands over his 27 year history of designing and building pedal boards for the biggest touring guitarists and studio producers. The Power Grid 10 was designed to meet the demands of any player who wants a dead quiet pedal board, that can be taken anywhere and is tour ready.

Some of the key features include:

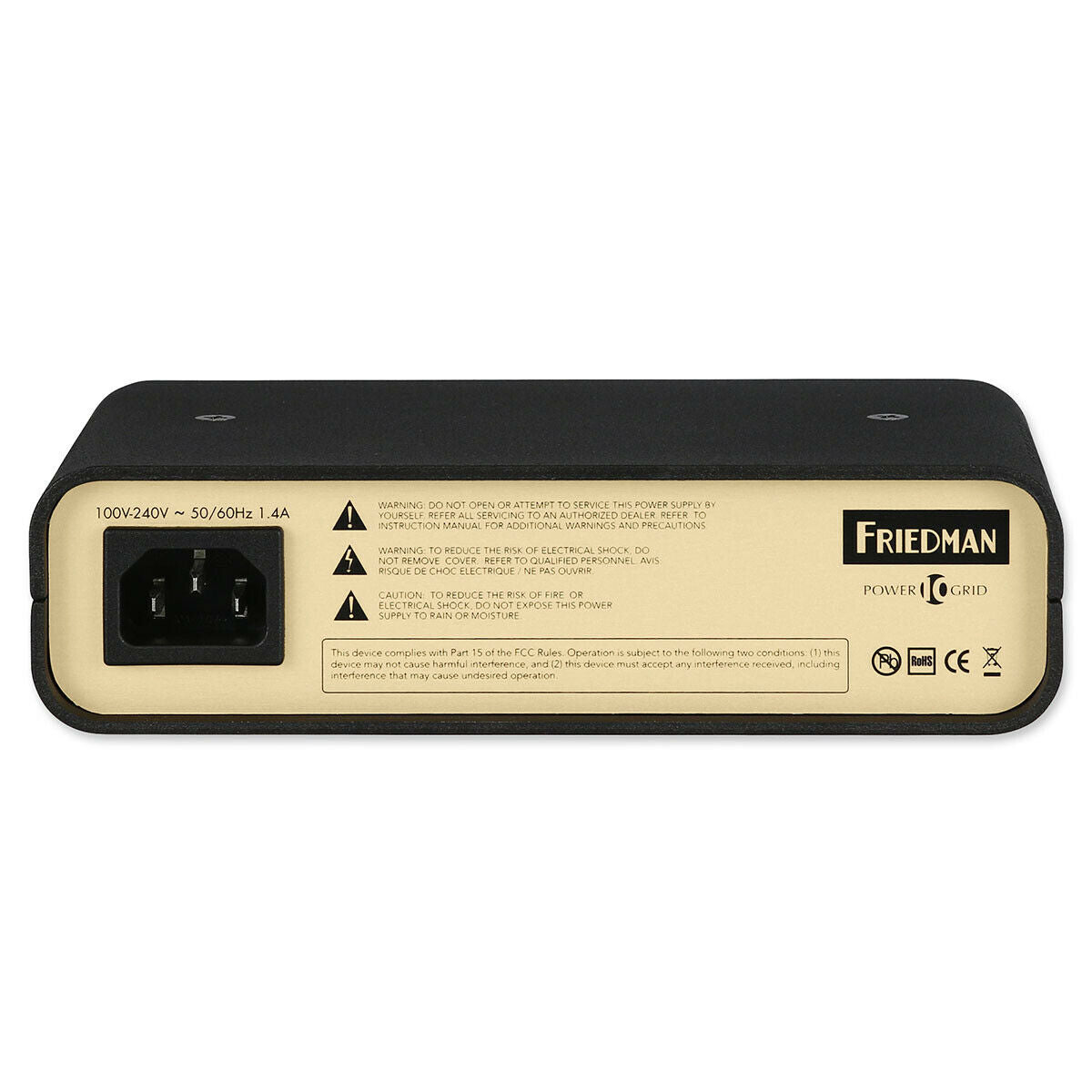

Universal power from 100-240Vac meaning you can plug it in anywhere in the world. You will never have to flip switches or worry about a step up or step down transformer.
ZERO field hum, which plagues many other power supplies with traditional toroidal transformers.
The Power Grid 10 will power virtually any pedal (350mA each per 9V output)
10 isolated outputs and all the cables needed to power your pedals.

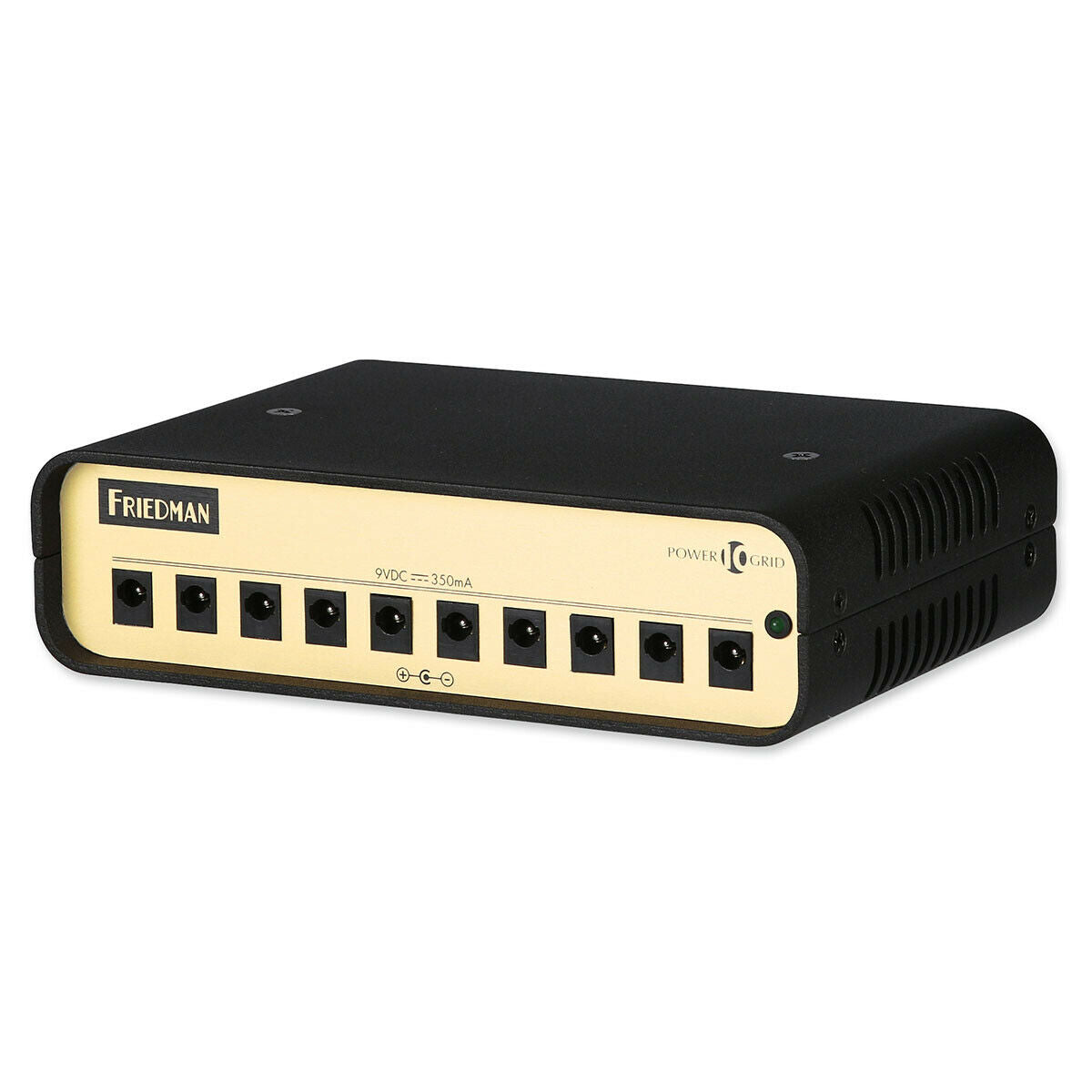

And for those boards that have no room to mount the power supply underneath, the Power Grid 10 was designed as a riser - yes, with the Power Grid 10 you can mount your pedals right on top of the housing, including your favorite Fuzz pedals, which are known to cause unnecessary proximity hum and infiltrate your other pedals.

So you can buy a cheap pedal board only to replace it later, or buy a Friedman now and enjoy it forever!

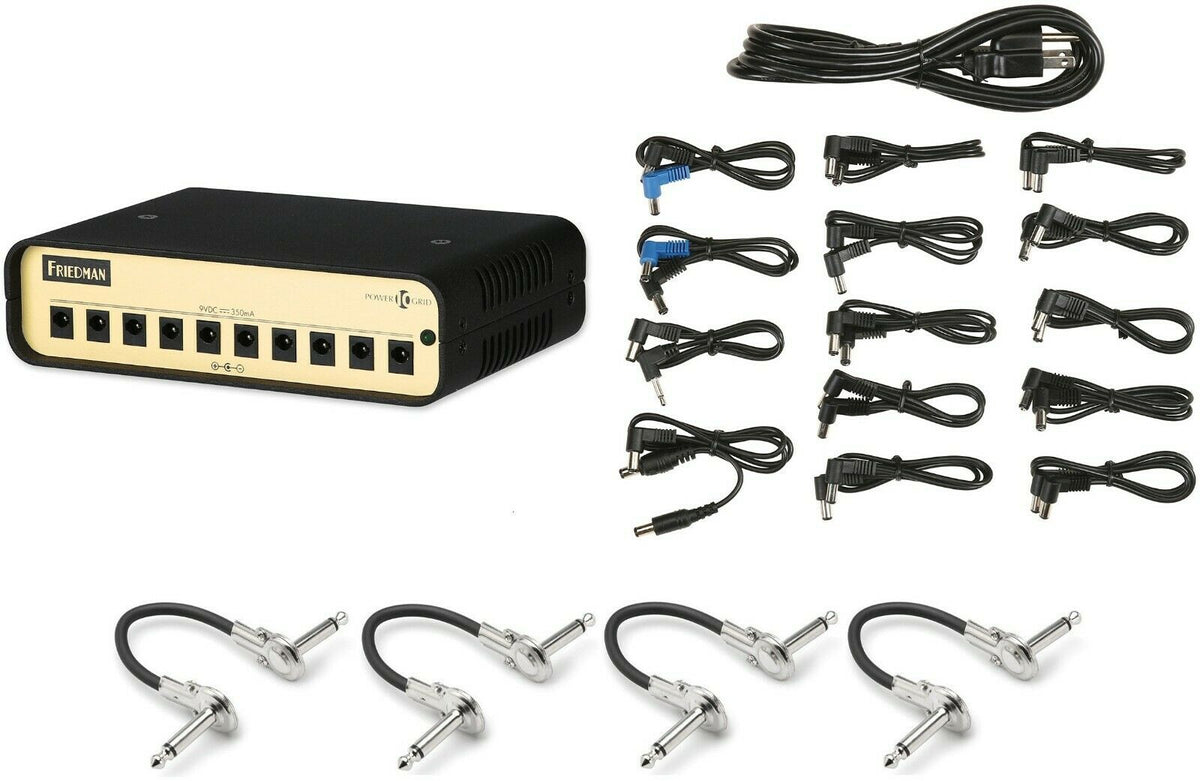

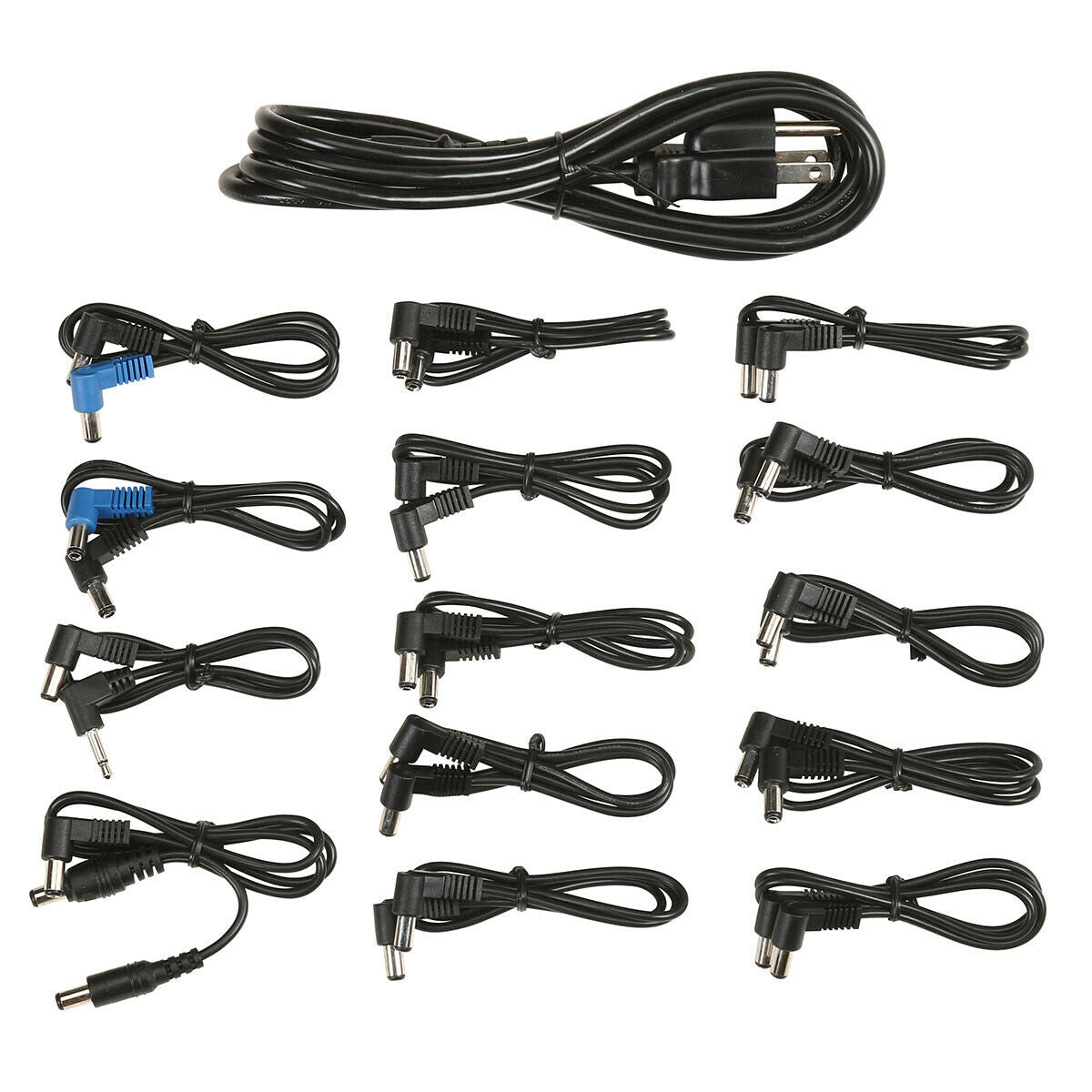

Cables Included:

(2) 2.1mm BLACK connector to 2.5mm BLUE connector - polarity reversed - 20" long - right angle connector on both sides
(10) 2.1mm BLACK connector to 2.1mm BLACK connector - regular polarity - 20" long - right angle connector on both sides
(1) 2.1mm BLACK connector to 1/8" phono BLACK connector - 20" long - right angle connector on 2.1mm connector.
(1) 18 V cable - 2.1mm BLACK connector with additional 2.1mm slave connector on one side to 2.1mm BLACK connector - regular polarity - 20" long - right angle connector on both sides.

Outputs:

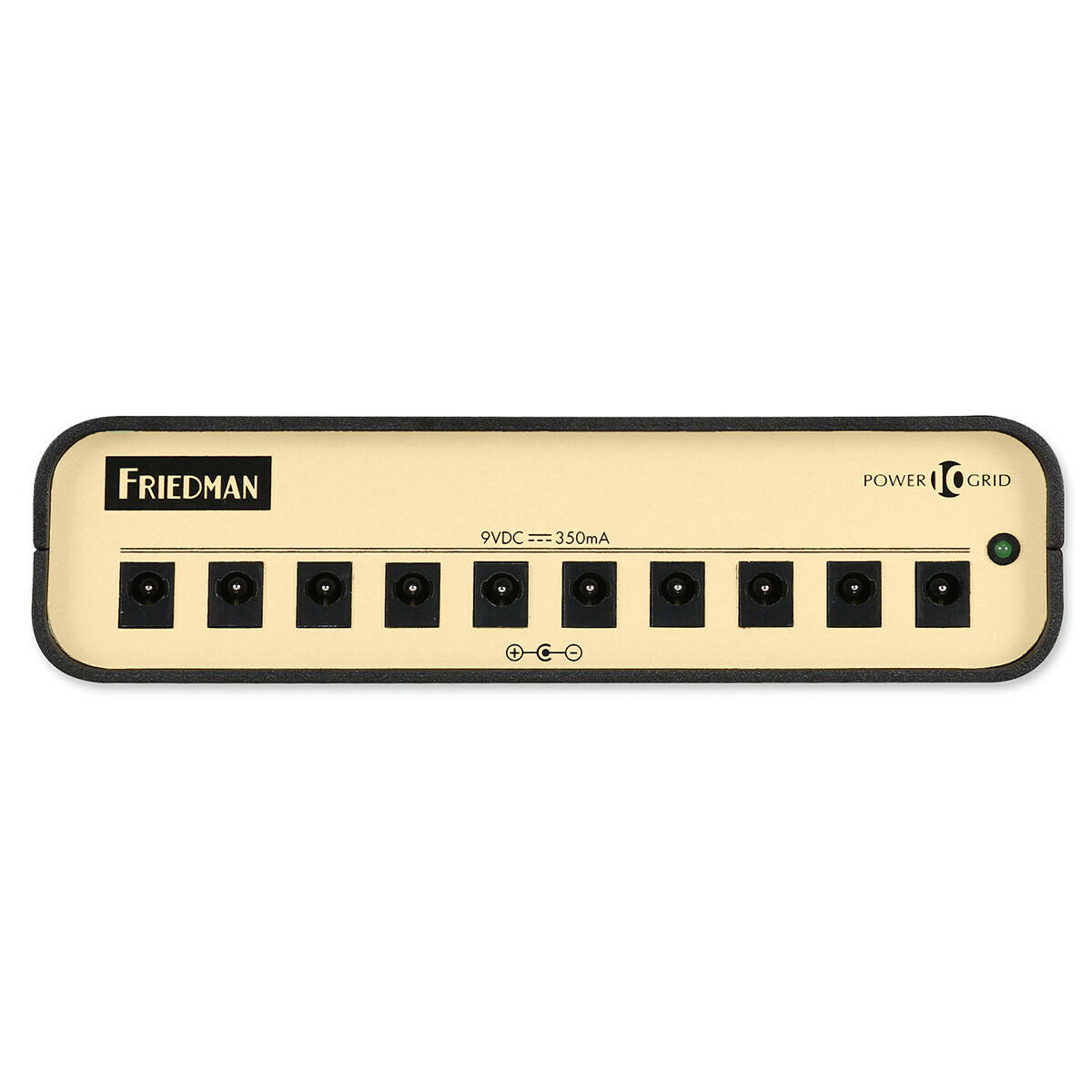

The Power Grid 10 provides 10 isolated outputs - 350mA per output at 9Vdc.

Specifications:

Dimensions: 4.5" x 6.75" x 1.75"
Weight: 1.5 lbs.
